產品描述

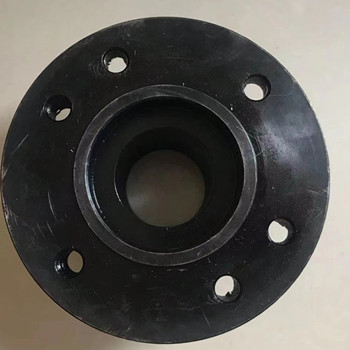

偏心套的作用

為降低成本和減小加工難度，我們常在軸承孔處采用偏心套。殼體的孔加工完成后

與其相清爛對位置就確定了，加入偏心套后，當齒搏悄輪或殼體存在加工和裝配誤差時，通過轉動偏心套可答銀漏調節兩齒輪之間側隙，能消除

齒厚偏差、中心距的偏差和公法線偏差，偏心套的引入不僅降低了殼體孔系的位置精度、齒輪螺旋角精度的加工要求，控制了回差。

免責聲明丨 部分內容來源網絡！本文僅供交流學習 , 版權歸屬原作者，部分圖片、內容推送時未能及時與原作者取得聯系，若來源標注錯誤或侵犯到您的權益煩請告知，我們將立即刪除.

The function of eccentric sleeve

To reduce costs and machining difficulties, we often use eccentric sleeves at the bearing holes. After the hole machining of the shell is completed

The position is determined by comparing the two gears. After adding the eccentric sleeve, when there are machining and assembly errors in the gear or housing, the side clearance between the two gears can be adjusted by rotating the eccentric sleeve, which can eliminate them

The introduction of eccentric sleeves not only reduces the positional accuracy of the shell hole system and the machining requirements for gear helix angle accuracy, but also controls backlash due to deviations in tooth thickness, center distance, and common normal line.

Disclaimer | Some content is sourced from the internet! This article is for communication and learning purposes only. The copyright belongs to the original author. Some images and content were not promptly contacted when pushed. If the source annotation is incorrect or infringes on your rights, please inform us and we will immediately delete it

Company Introduction

The company supplies paver accessories, roller accessories, milling machine accessories, paver scraper drive shaft, scraper drive shaft assembly, leveling instrument, leveling instrument bracket, hydraulic pump and accessories. We also supply vulnerable parts for pavers, including balance beams, agitator shafts, pedals, feeding base plates, blades, ironing plates, reducers, chain rails, track plates, support wheels, scraper chains, and feeding chains.
